PTFE, machined, molded, & die cut form gaskets, o-rings, parts, rod, bar and tube PTFE

American Seal & Packing
Division of Steadman & Associates, Inc.

Your PTFE specialist for Parts, Sheet, Gaskets, Bar and Rod

   PTFE Sheet - Virgin, Mechanical and Expanded grades

The perfect material for Food (FDA) applications. Chemical Compatibility 0-14 PH Good for Temperatures to 450F

Order On-Line

We feature Amerilon filled PTFE sheet
Amerilon sheet
Approved as an equal to Garlock's Gylon 3500, 3504, and 3510 - Yes - all three can be substituted by The Amerilon product line provided that hydrofloric acid is not present.

Joint Sealant

Ideal for all large equipment flanges. Eliminates retorting, easy to remove, No pre cutting required, Low stress required to seal, Self adhesive backing makes it easy to install.

Order On-Line

Valve stem packing
Soft expanded PTFE, easy to install, chemically inert, will not age, FDA suitable, adds service life to old worn valves by conforming to pitted or worn surfaces. Also available in the original virgin PTFE version.

Order On-Line

Insertable PTFE Gaskets
Seal troublesome, corroded, pitted & steam-drawn flanges with these preformed gaskets.   100% P.T.F.E. preformed gaskets easily drop into your flange and seal it. They are just as easy to remove after use. Made to fit standard Ansi 150, 300, 400 and 600 lb. flanges in 1/2 through 12" sizes      Order On-Line

PTFE Cut Gaskets

Virgin*     Mechanical Grade*      Expanded PTFE*
Gaskets cut from Virgin or mechanical grade material PTFE Ž, posses all of the great aspects of PTFE like chemical compatability and a 450-500F temperature range, but require torque to seal. If that torque is not possible or if flange faces are worn or pitted, Expanded PTFE , gaskets are the answer.
Order On-Line

We provide Virgin and filled PTFE (PTFE) Rod, Tube and Bar stock. Both in molded and extruded versions.

At American Seal & Packing we extrude a large range of standard size PTFE rod from 3/32" diameter to 5" diameter. We also have the capability to centerless grind intermediate sizes up to 2" diameter. Many of our sizes can be supplied in Virgin PTFE or with fills of glass, bronze, brass, carbon, graphite, moly and a large range of colors.

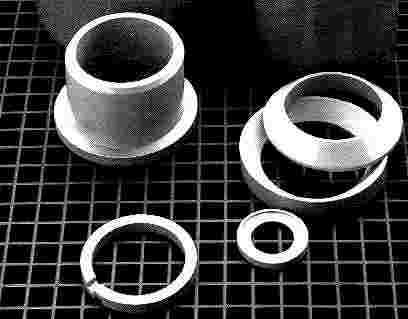

Machined or molded PTFE parts

From Virgin or Mechanical Grade for v-packings, mechanical seal wedges or a 1000 other applications. We can make parts made from samples or prints.
PTFE sheet, rod and bar are kept in stock for immediate shipment

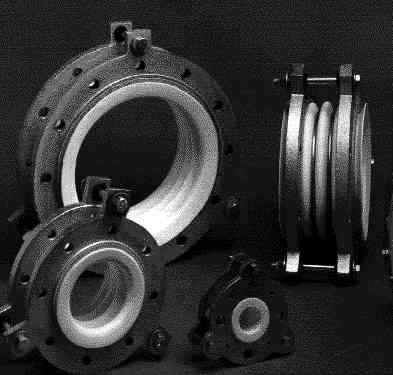

PTFE Bellows Expansion joints

Allow your chemical system to flex when it has to. Using PTFE expansion joints saves wear on your system and protects from pipe strain. Ideal when you have to deal with chemicals.

Call us at: 714-593-9780 Fax: 714-593-9701
